Stainless Steel Metal Random / Pall Ring Metal Inner Arc Ring 25*25*0.4mm
Product Description of Metal Random Packing
It is made of materials like carbon steel, stainless steel or Aluminum alloy, etc. The product has features such as thin wall, heat resistant, high free volume, high capacity, low resistance, high separation efficiency and so on.
It is especially suitable for rectification towers under vacuum to treat thermosensitive, decomposable, polymerizable or cokablesystems, so it is widely used in packing towers in petrochemical industry, chemical fertilizer industry and environmentalprotection, etc..
Material available:
Carbon steel, stainless steel including 304, 304L, 410,316, 316L
| Product Name | Stainless Steel Metal Pall Ring |
| Material | metal, stainless steel, carbon steel, Aluminum alloy etc. |
| Surface Area | 62 - 346 m2/m3 |
| Bulk Density | 145 - 345 kg/m3 |
| Feature | Corrosion and Heat Resistance |
| Size | 16mm,25mm,38mm,50mm, 76mm,or customized |
| Certification | ISO9001 |
| Place of Origin | Hebei Province,China |
| Brand Name | Yuanhai |
Specifications of Metal Random Packing
| Size (mm) | Bulk density (kg/m3) | Number (per m3) | Surface area (m2/m3) | Free volume (%) |
| 16*16*0.3 | 360 | 201000 | 346 | 95.5 |
| 25*25*0.4 | 302 | 51000 | 212 | 96.2 |
| 25*25*0.5 | 400 | 51000 | 216 | 95 |
| 25*25*0.6 | 461 | 51000 | 219 | 94.2 |
| 38*38*0.4 | 218 | 15000 | 143 | 97.2 |
| 38*38*0.5 | 262 | 15180 | 145 | 96.7 |
| 38*38*0.6 | 328 | 15000 | 146 | 95.9 |
| 50*50*0.5 | 194 | 6500 | 106 | 97.5 |
| 50*50*0.7 | 285 | 6500 | 108 | 96.4 |
| 50*50*0.9 | 365 | 6500 | 109 | 95.4 |
| 76*76*0.8 | 205 | 1830 | 69 | 97.4 |
| 90*90*1.0 | 229 | 1160 | 62 | 97.1 |
The above data is reference to material stainless steel (AISI304) in the material thickness shown. Other wall thicknesses are available on request.
Material available: carbon steel, stainless steel including 304, 304L, 410,316, 316L.
Features of Metal Random Packing
- Popular random packing.
- High flux.
- High efficiency.
- High load elasticity.
- Excellent stain resistance.
- Low pressure drop.
Package
- Covered with moisture-proof paper.
- Packed in dry boxes which have enough strength to withstand impact.

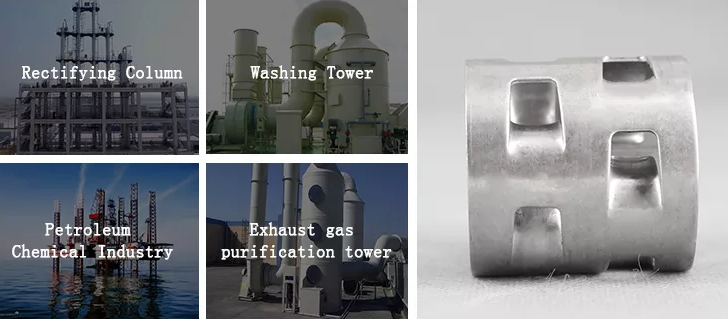

Application of Metal Random Packing
- Metal pall rings are widely used in kinds of separation, absorption, desorption and pressure reducing devices.
- Metal pall rings are commonly applied to all sorts of decarbonization and system of synthetic ammonia.
Company Profile
1. Is your company a manufacturer or a trading company?
We are a manufacturer located in Anping County, China.
2. Do you have inport-export right?
Yes, we do. Our factory has been certificated as an import-export enterprise.
3. What is your payment mode?
30% in advance and 70% before delivery by T/T, WESTERN UNION, L/C or negotiated.
4. How about your packing?
We usually packed in plastic material inside and then wooden box outside.
5. How long is your delivery?
Usually 10-20 days after order confirmed, according the quantity ordered.
6. Is it sample available?
Yes, small pieces of sample are available in our company.
| Size (mm) | Bulk density (kg/m3) | Number (per m3) | Surface area (m2/m3) | Free volume (%) |
| 16*16*0.3 | 360 | 201000 | 346 | 95.5 |
| 25*25*0.4 | 302 | 51000 | 212 | 96.2 |
| 25*25*0.5 | 400 | 51000 | 216 | 95 |
| 25*25*0.6 | 461 | 51000 | 219 | 94.2 |
| 38*38*0.4 | 218 | 15000 | 143 | 97.2 |
| 38*38*0.5 | 262 | 15180 | 145 | 96.7 |
| 38*38*0.6 | 328 | 15000 | 146 | 95.9 |
| 50*50*0.5 | 194 | 6500 | 106 | 97.5 |
| 50*50*0.7 | 285 | 6500 | 108 | 96.4 |
| 50*50*0.9 | 365 | 6500 | 109 | 95.4 |
| 76*76*0.8 | 205 | 1830 | 69 | 97.4 |
| 90*90*1.0 | 229 | 1160 | 62 | 97.1 |
The above data is reference to material stainless steel (AISI304) in the material thickness shown. Other wall thicknesses are available on request.
Material available: carbon steel, stainless steel including 304, 304L, 410,316, 316L.
